탁상용 전도도 측정기 EC-PSTAR2125 Thermo Conductivity 013005MD STARA2125 후속모델

전도도

범위

0.010 μS/cm to 3000 mS/cm

분해능

0.001 µS/cm minimum, auto-ranging, up to 4 digits

상대 정확도

±0.5% reading

교정 점

1 to 5 points

교정 방법

Automatic standard recognition, manual entry option

교정 표준 용액

100.0 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.9 mS/cm or up to 4 custom standards

셀상수

0.100 cm-1, 0.475 cm-1, 0.550 cm-1, 1.000 cm-1, 10.00 cm-1 or user-defined from 0.001 to 199.9 cm-1

온도 보상

Linear (0.00 to 10.00 %/°C), nLFn (non-linear natural water), nLFu (non-linear ultra-pure water), EP/USP or off

기준 온도

5, 10, 15, 20, 25 or 30°C

TDS

범위

0.010 ppm to 500.0 ppt (TDS factor of 1.00); or 0.010 mg/L to 500.0 g/L (TDS factor of 1.00)

분해능

0.001 ppm or mg/L minimum, auto-ranging, up to 4 digits

상대 정확도

±0.5% reading

단위

ppm to ppt; or mg/L to g/L

교정 점

1 to 5 points

TDS factor

Linear (0.01 to 10.00), ISO/EN 27888, 442, NaCl

Salinity

범위

0.010 to 80.00 ppt; 0.01 to 42.00 PSU; or 0.01 to 400.0% NaCl

분해능

0.001 ppt minimum; 0.01 PSU minimum; or 0.01% NaCl minimum, auto-ranging

상대 정확도

±0.5% reading

교정점

1 point % NaCl

모드

Natural Seawater (ppt), Practical Salinity Units (PSU), or % NaCl

Resistivity

범위

1.0 Ω to 100.0 MΩ

분해능

0.1 Ω minimum, auto-ranging

상대 정확도

±0.5% reading

온도

범위

–30.0 to 130.0ºC, –22.0 to 266.0ºF

분해능

0.1ºC, 0.1 ºF

상대 정확도

±0.3ºC, ±0.5ºF

교정점

1 or 2 points

오프셋 조정

Up to ±5.0ºC

온도 소스

Automatic with ATC sensor, ambient with built-in meter temperature sensor or manual entry

기기 기능

측정 채널수

1

측정 항목

Conductivity, TDS, salinity or resistivity with temperature

읽기 유형

Continuous, Auto-Read or Timed

시간 간격 설정

3 seconds to 2 hours

측정 레이아웃

Customizable options for basic, advanced or user-defined

측정 안정성

Automatic, fast, medium or slow

Sample ID

Auto-incremental or manual, up to 25 alphanumeric characters

Electrode ID

Up to 20 alphanumeric characters

그래프/차트 보그

Single parameter with temperature

알람 설정

1 high and 1 low value per parameter

마지막 교정 정보

Calibration summary with date and time

기기 특징

화면

7-inch, high-resolution color graphic LCD

터치스크린

Capacitive with lab glove compatibility

화면 안내

On-demand information screens; onscreen user guide and step-by-step calibration guidance

날자 및 시간

Yes

시간 형식

12 or 24 hour

읽기 유형

Continuous, auto-read, timed

날짜 형식

Selectable as MM-DD-YYYY, DD-MM-YYYY or DD-MMM-YYYY

기기명

Up to 20 alphanumeric characters

보안 모드

3 administrator and 30 user accounts with individual password protection, custom user access permissions and audit trail

사용자명

Up to 20 alphanumeric characters

방법

10

데이터 출력

USB flash drive, computer or compact ink printer

데이터 출력 형식

Report, CSV or print

데이터 로그

10,000 data sets with time and date

데이터 로그 보내기

Customizable options for basic (short), intermediate, advanced or all data

교정 로그

20 per parameter with time and date

교정 로그 보내기

Customizable options for basic (short), intermediate, advanced or all data

교정 기록

1 alarm per parameter

교정주기 알람설정

1 hour to 30 days or off

음향 알림

User set for notifications and alarms, stable reading

유지보수 알림설정

Up to 5 electrode maintenance reminders and up to 5 solution maintenance reminders

절전 모드

Selectable time interval of 5, 10, 20, 30, 60 minutes or off

기기 점검

Self-test, stability test

가이드 모드

Calibration modes, measurement mode, meter connections, electrode stand assembly

교반기 프로브 입력

1

교반기 프로브 속도

5 selectable speeds: from 250 RPM to 3600 RPM

전극 입력

8-pin MiniDIN

데이터 출력

1 USB-A port for USB flash drive; 1 export port for computer or compact ink printer

액세서리 입력

1 USB-A port for USB mouse, USB keyboard or USB barcode scanner

메모리

Non-volatile, to preserve data and settings in case of power loss

언어

Chinese, English, French, German, Italian, Japanese, Korean, Portuguese or Spanish

기기 보증

2 years

인증

CE, TUV 3-1, FCC Class A

인클로저

IP54

전원

100-240 VAC, 50-60Hz, 9 DC adapter, 2.0A

크기(L x W x H)

218.9 x 153.2 x 91.33 mm, 8.52 x 6.03 x 3.60 in.

무게

1.00 kg, 2.20 lbs

Cat. No.

Description

PSTAR2120

Orion Pro Star EC212 conductivity bench meter with electrode stand,

includes USB flash drive, computer cable, 100-240V 50/60Hz universal power adapter (purchase electrodes separately)

PSTAR2125

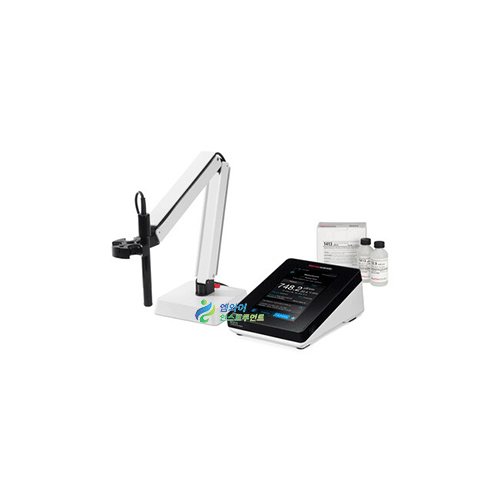

Orion Pro Star EC212 conductivity bench meter standard kit,

includes meter with stand (PSTAR2120), 4-cell epoxy/graphite-body K=0.475 conductivity/ATC electrode (013005MD), 1413 μS/cm conductivity standard pouches

PSTAR2126

Orion Pro Star EC212 conductivity bench meter pure water kit,

includes meter with stand (PSTAR2120), ultra pure water 2-cell K=0.1 conductivity/ATC electrode with flow cell (013016MD), 100 μS/cm conductivity standard bottles
